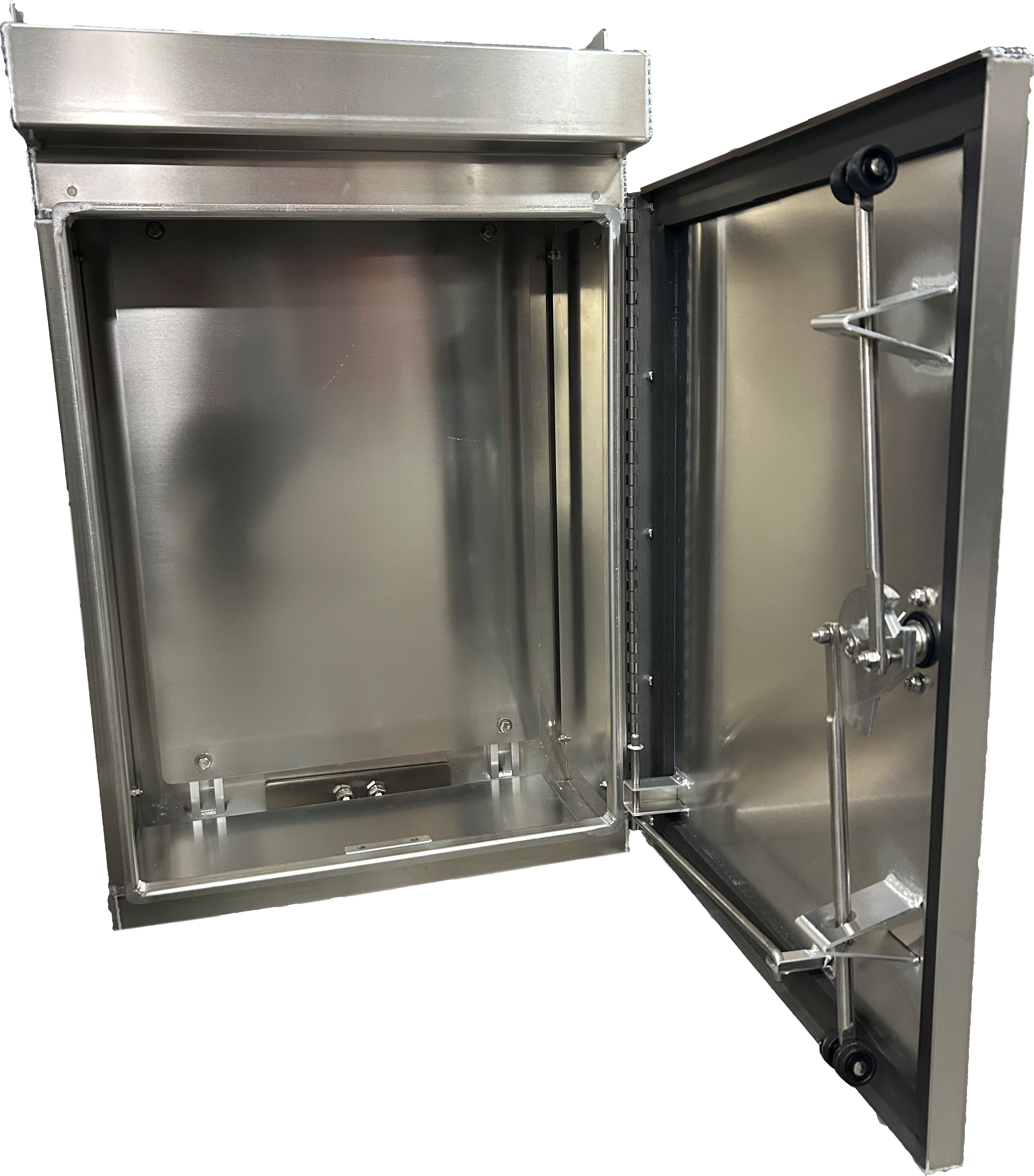

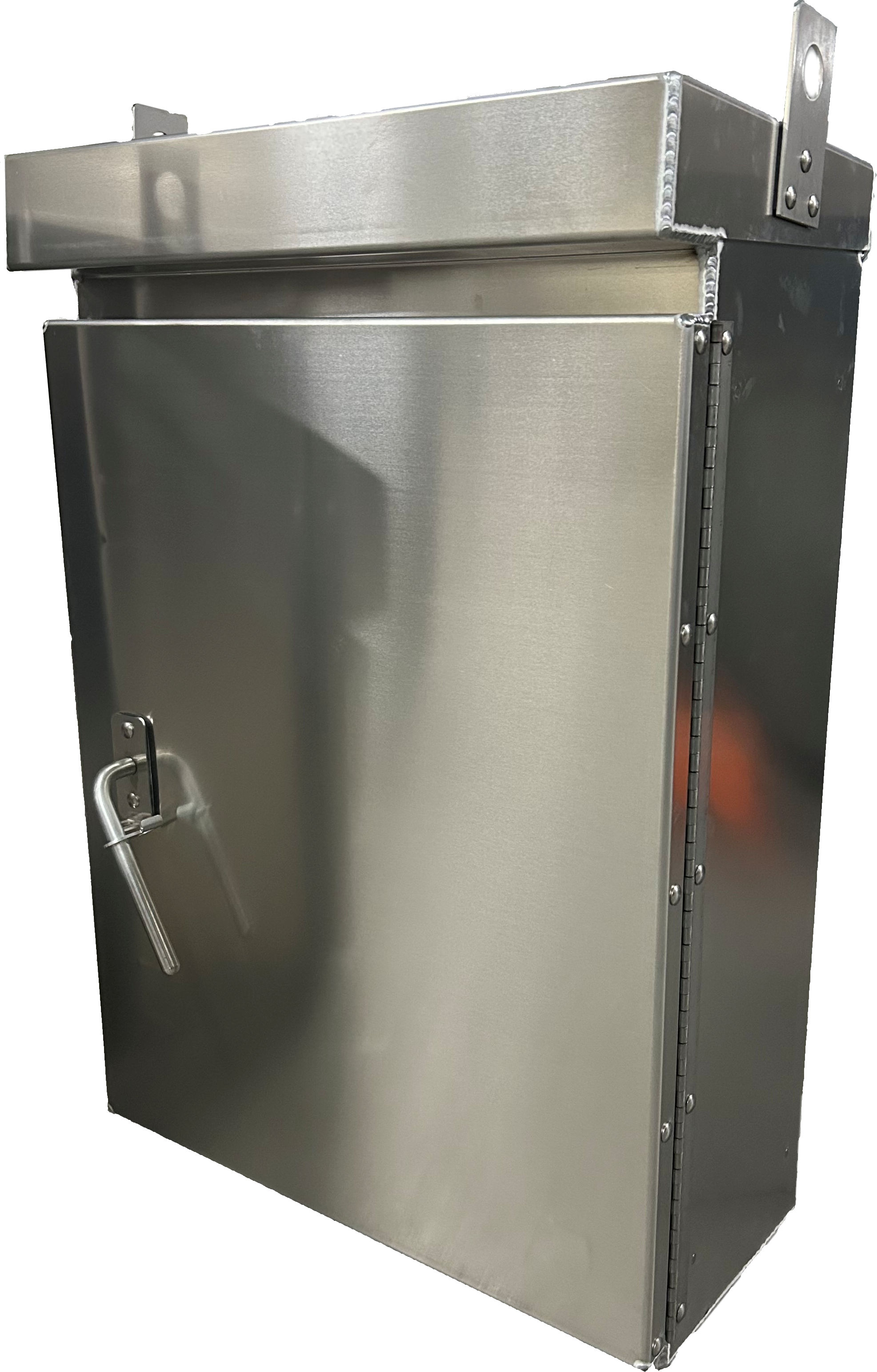

Industrial Enclosures

Model: NEMA D Style

PART NUMBER: ENC-1058
TYPE: UL Type 4X

• 36”H x 24”W x 10”D
• Wall Mount Provisions
• .125 5052-H32 Aluminum
• (1) Front Door
• Continuous Stainless Steel Piano Hinge
• Stainless Steel L-Handle with Padlock Feature
• 3-Point, Solid Stainless Rods with Nylon Wheels
• Corbin #2 with (2) Keys per Door
• Door Stops 90 and 140 Degrees, Bottom of Each Door
• (1) Louvered Door, Filter Rack with Pleated Air Filter and Big Screen
• Mill Finish
• (1) Back Panel
• (2) Side Panels
• (6) Unistrut Rails
• Mounting Kit
• (1) Data Hook
• UL Compliant (UL-50-508A)
• ISO 9001:2015 Certified
• Build America, Buy America (BABA)

We customize to fit your needs.
