Industrial Enclosures

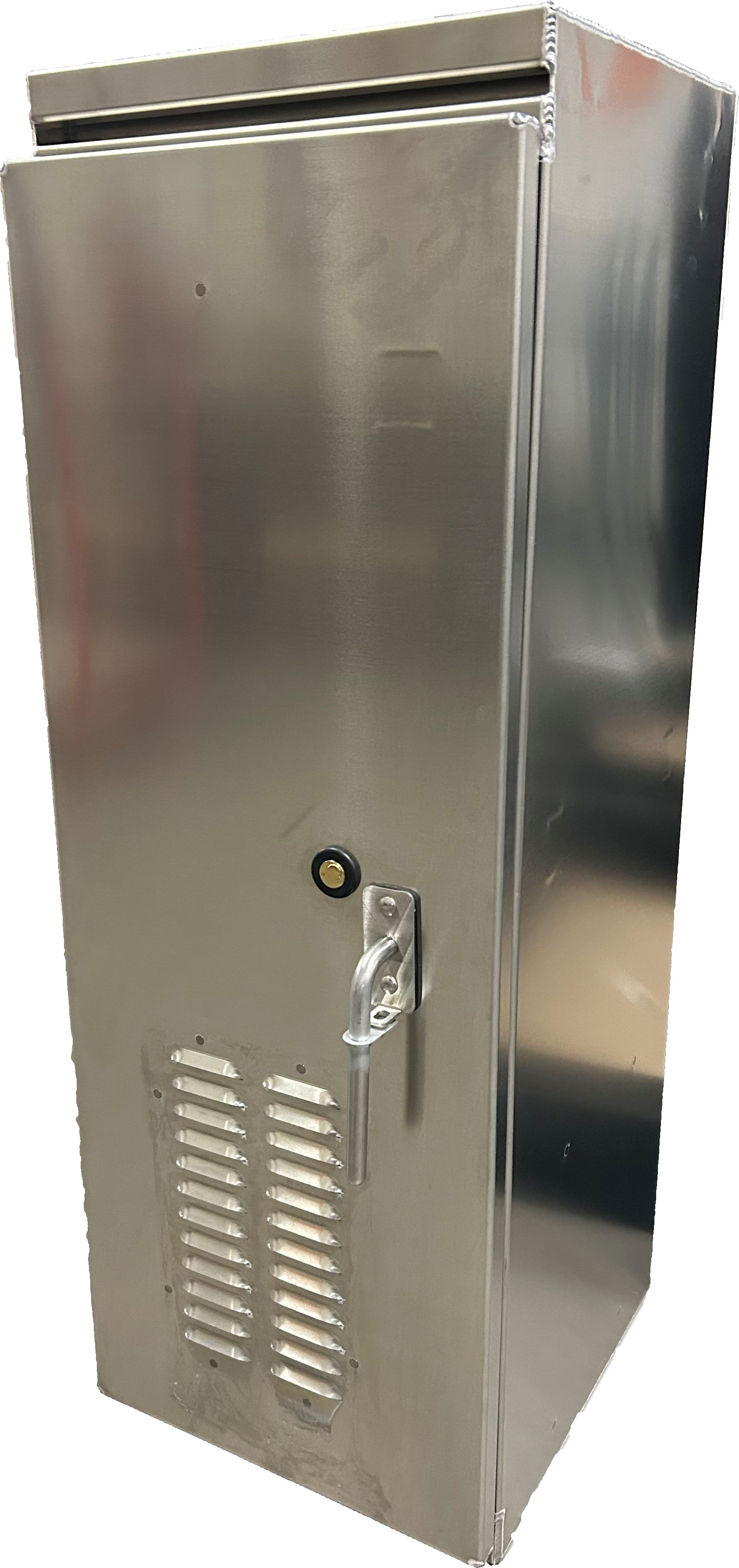

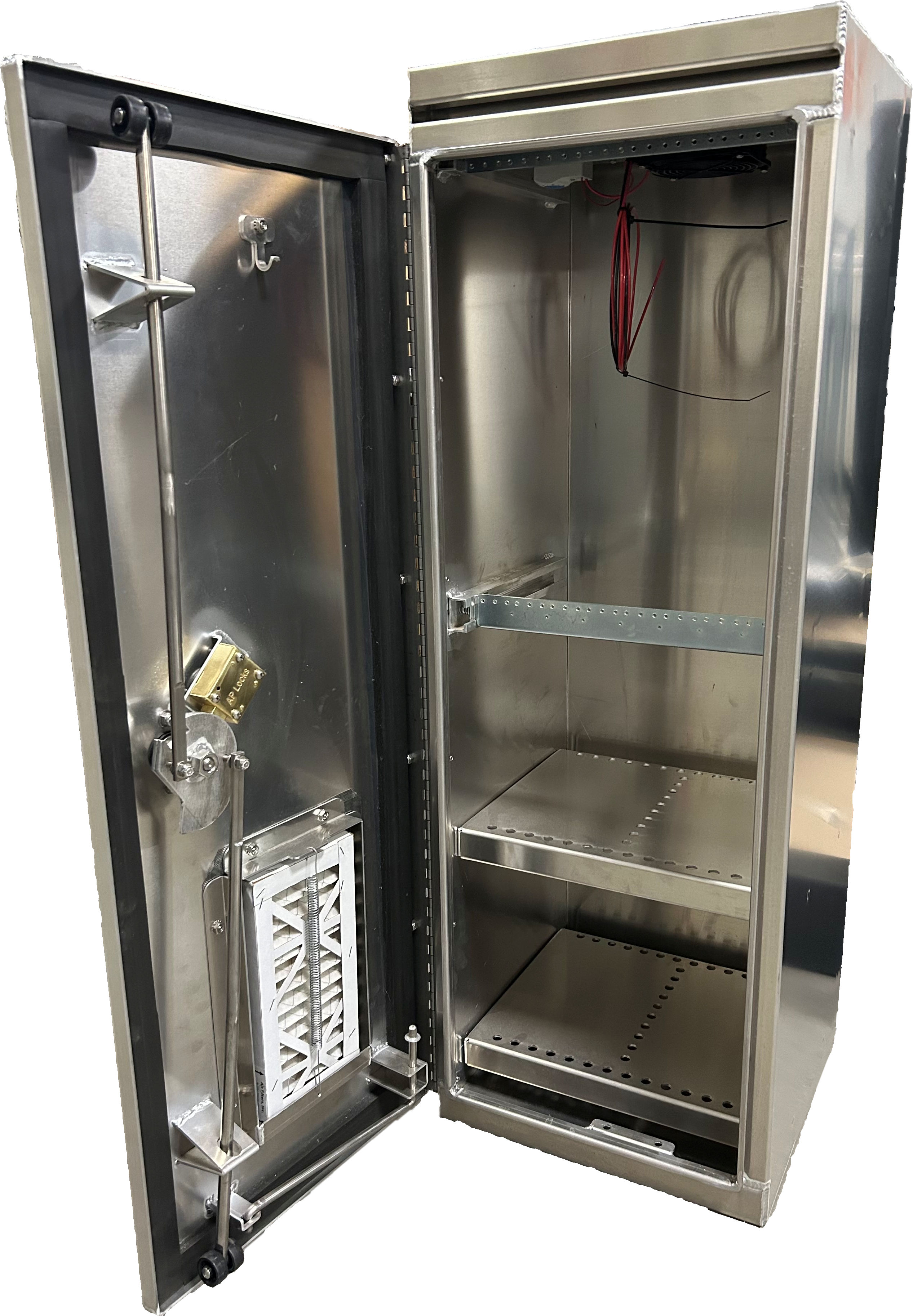

Model: Battery Backup Cabinet

PART NUMBER: ENC-0041
TYPE: U.L. type 3R

• 5052 H32 Aluminum .125” Thick
• 48”H x 16”W x 16”D
• Pad Mount w/ solid bottom
• (1) Left Door
• Continuous Stainless Steel Hinge
• Stainless Steel L-Handle with padlocking feature
• 3-point Door Locking System w/ Solid stainless steel rods
• (1) Corbin #2 Lock w/ 2 keys
• Doors stops at 91 and 140 degrees
• Doors Louvred with pleated filter and bug screen
• S-flange and fan in a sloped top that provides ice an water shed
• Vertical 19” mounting rails
• (1) Fan 48VDC 100CFM/Fuse
• (1) Thermostat
• (2) Vented Shelves
